BRONTO S341 HLA

AVAILABLE FOR:

The Bronto S341HLA is North America’s tallest truck-mounted aerial platform, reaching an impressive 341 feet—perfect for high-rise construction and wind turbine maintenance. With a 105-foot horizontal outreach, 360-degree rotation, and articulated booms, it offers unmatched flexibility for accessing challenging locations.

Designed for both safety and efficiency, the Bronto+ control system ensures precise, stable operation with advanced safety monitoring. The extendable work cage, supporting up to 1,500 lbs, provides ample space for crews and materials, while its 85-degree rotation allows for optimal positioning. When working at extreme heights, the Bronto S341HLA delivers the reliability and security you need.

Key Features:

  • Vertical reach by truck
  • Automatic outrigger leveling
  • 110 volts at platform level with generator at ground level (generator not included).
  • Extendable platform: 3′ x 11′
  • Voice on Command intercom from platform to turntable
  • Battery backup operation system.
  • Manual emergency bleed off system.
  • Integrated wind speed indicator
  • 28 mph max wind speed
  • Automatic platform leveling
  • Meets emissions laws for all states, including CA.
  • Rear wheel steer for increased maneuverability
Workloads
Max Working Height: 104 m / 341 ft
Max Outreach: 30 m / 100 ft
Max Basket Capacity: 600 kg / 1,300 lbs
Dimensions
Transport: 53 ft L x 8.5 ft W
Outrigger Footprint: 26 ft L x 26 ft W
Approx. Weight: 142,000-145,000 lbs
Standard Platform: 7.5 ft L x 3 ft W
Extendable Platform: 10 ft L x 3 ft W

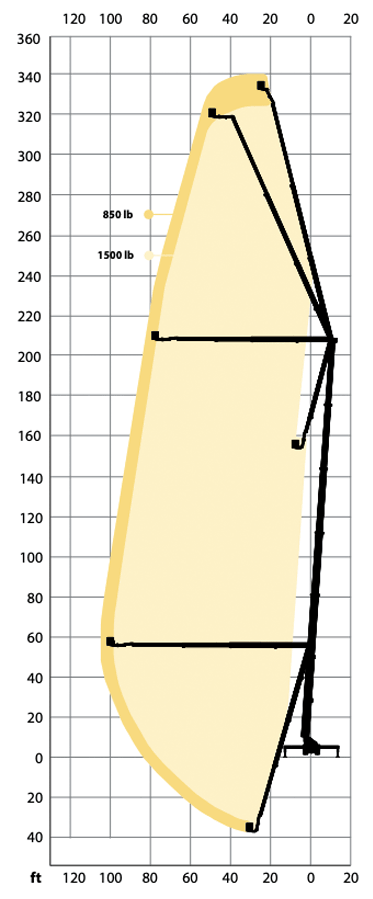

Working Envelope

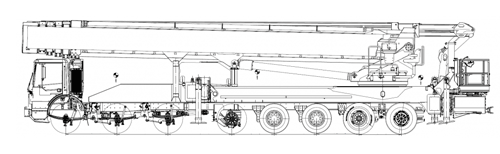

Diagrams presented with standard cage. Drawings with an example configuration and carrier, for reference purpose only. Variations apply. *depending on the chassis

341 ft
2 x 85°
108 ft
360º
334 ft
13’ 6’’ *
1500 lb (1300 lb)
55 ft *
3’ 4’’ x 7’ 9’’ (12’ 1’’)
140,000 lb *
