BRONTO S295 HLA

AVAILABLE FOR:

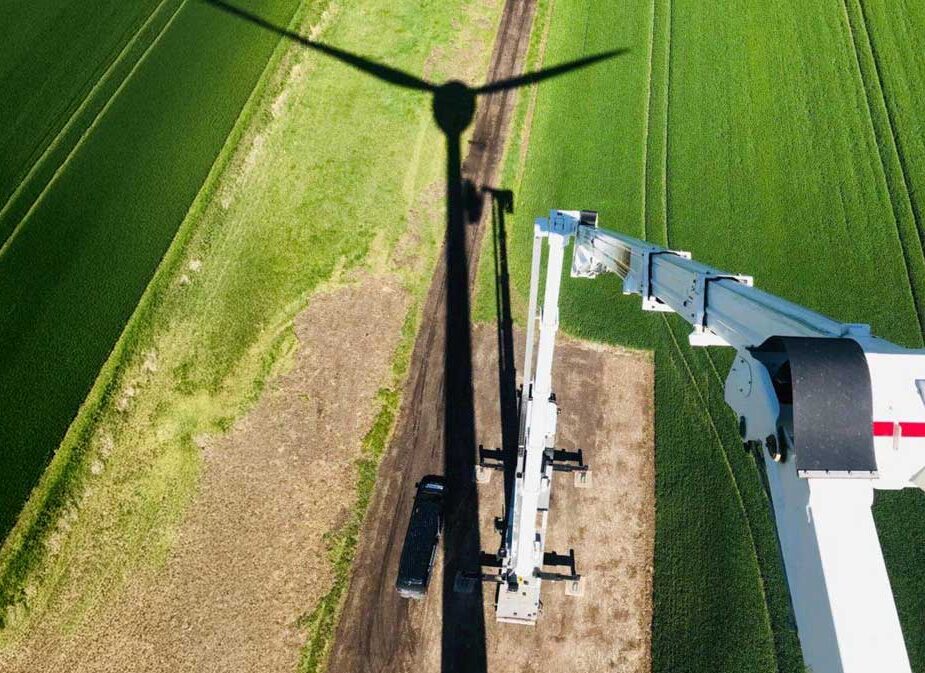

The Bronto Skylift 295 HLA aerial platform is most often used in the Wind & Renewables industry, the 295 is the perfect height for reaching the nacelle of a wind turbine.

This truck-mounted aerial lift also boasts an outreach capability of 100 feet (30 meters) , and a 360 degree turntable rotation. Some of our 295 rentals come with an extendable platform (from 7 feet to 10 feet).

Basket capacities range from 970 pounds (440 kg) to 1,300 pounds (600 kg).

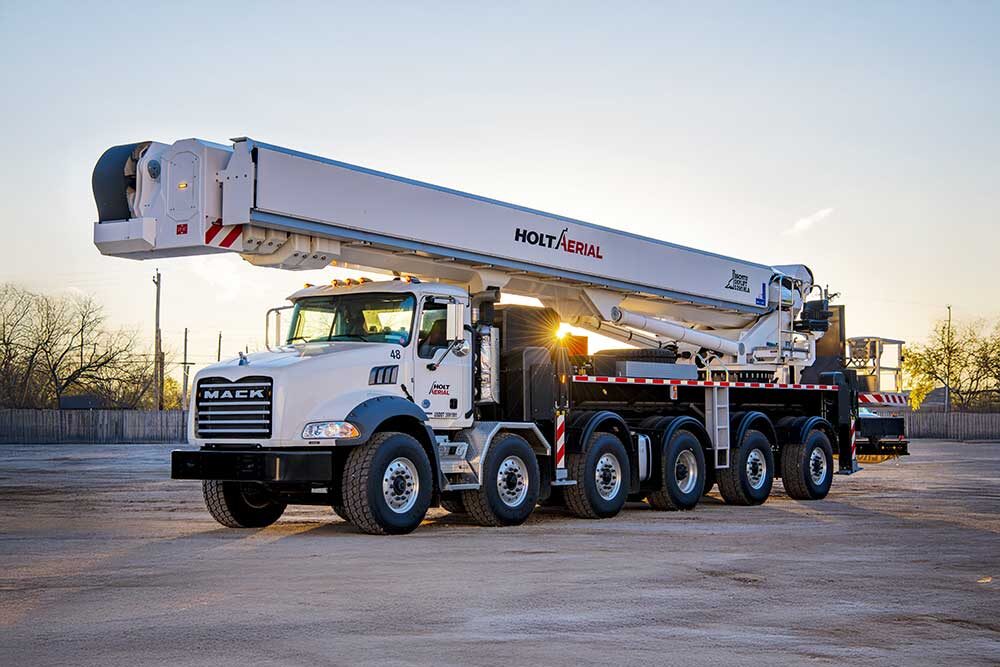

In our rental fleet, we have models that are mounted on Kimble, TOR, and Mack chassis.

Transmission options are Alison and Eaton, with a Cummins engine.

Key Features:

90 meters or 295 feet of vertical reach
Automatic outrigger leveling
110 volts at platform level with generator at ground level (generator not included).
Extendable platform: 3’x11′
Voice on Command intercom from platform to turntable
Battery backup operation system.
Manual emergency bleed off system.
Integrated wind speed indicator
28 mph max wind speed
Automatic platform levelling
Meets emissions laws for all states, including CA.
Rear wheel steer for increased maneuverability

Workloads

Max Working Height:	90 meters / 295 ft
Max Outreach:	30 meters / 100 ft
Max Basket Capacity:	600 kg / 1,300lbs

Dimensions

Transport:	53 ft L x 8.5 ft W
Outrigger Footprint:	27 ft L x 27 ft W
Approx. Weight:	110,000-115,000 lbs
Standard Platform:	7.5 ft L x 3 ft W
Extendable Platform:	10 ft L x 3 ft W

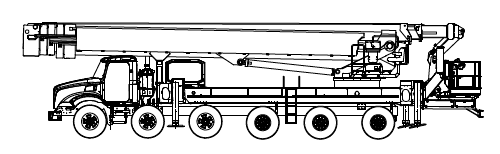

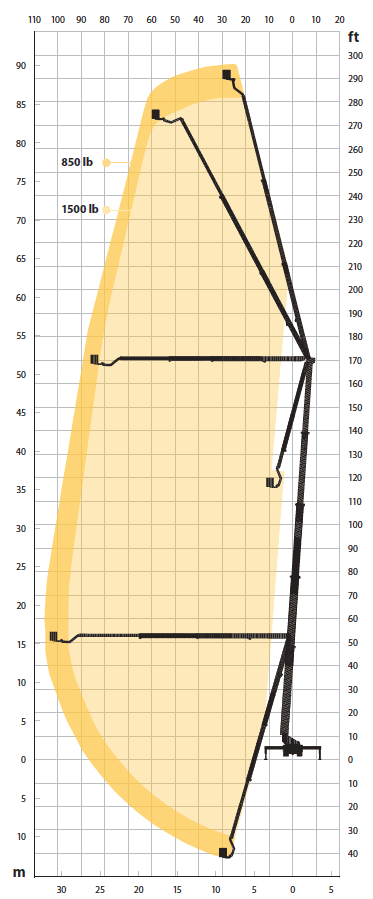

Working Envelope

Diagrams presented with standard cage. Drawings with an example configuration and carrier, for reference purpose only. Variations apply. *depending on the chassis

BRONTO S295 HLA

Key Features:

Workloads

Dimensions

Working Envelope

295 ft

2 x 85°

104 ft

360º

288 ft

13’ 6’’ *

1500 lb (1300 lb)

52 ft *

3’ 4’’ x 7’ 9’’ (12’ 1’’)

110,000 lb *
