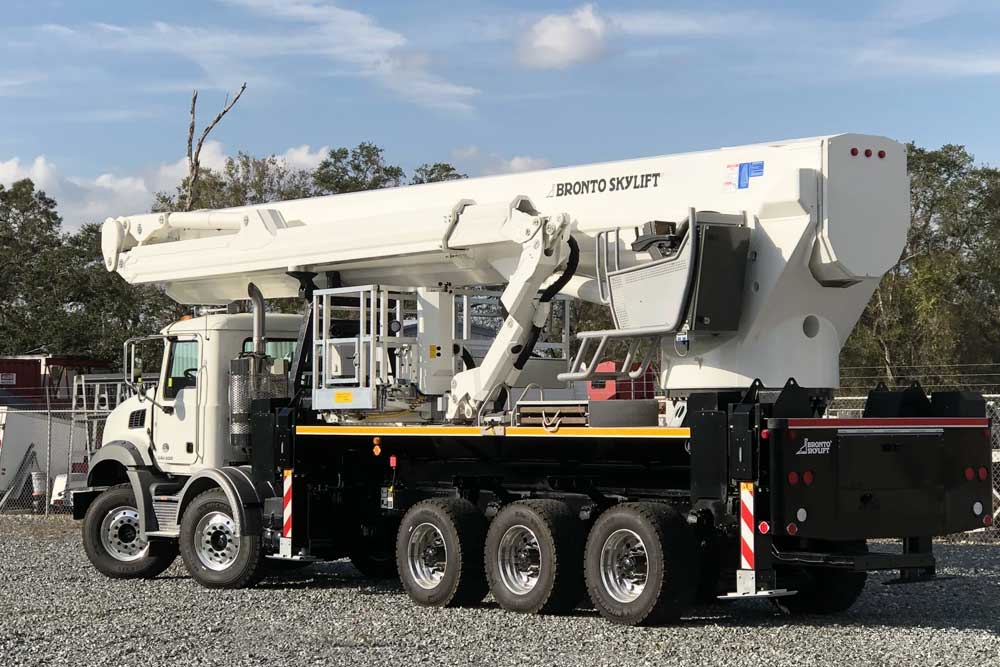

BRONTO S230 XR

AVAILABLE FOR:

The XR range of aerial platforms is built by operators, for operators, enabling you to achieve more with less.

The S230 XR is equipped with the advanced fifth-generation Bronto+ control system, ensuring smooth and precise movements in every situation. Bronto+ offers variable jacking capabilities, enabling users to adjust the cage load based on the specific work environment.

It continuously monitors the actual cage load, allowing the machine to operate at its maximum allowed outreach in all directions.

This eliminates the possibility of operator error and ensures safe operation, letting operators focus on the task at hand—such as the tower and lines—without concern for reach limitations.

Key Features:

  • 70 meters or 230 feet of vertical reach
  • Vertical reach by truck
  • Automatic outrigger leveling
  • 110 volts at platform level with generator at ground level (generator not included)
  • Extendable platform: 3’x11′
  • Voice on Command intercom from platform to turntable
  • Battery backup operation system
  • Manual emergency bleed off system
  • Integrated wind speed indicator
  • 28 mph max wind speed
  • Automatic platform levelling
  • Meets emissions laws for all states, including CA
  • 220-degree basket rotation on XR units only
Workloads
Max Working Height: 70 meters / 230 ft
Max Outreach: 35 meters / 115 ft
Max Basket Capacity: 600 kg / 1,300 lb
Dimensions
Transport: 39 ft L x 8.5 ft W
Outrigger Footprint: 26 ft L x 26 ft W
Approx. Weight: 64,000-69,000 lbs
Standard Platform: 7.5 ft L x 3 ft W
Extendable Platform: 10 ft L x 3 ft W

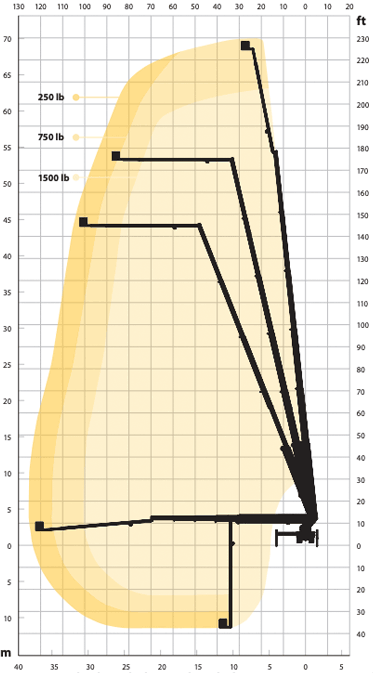

Working Envelope

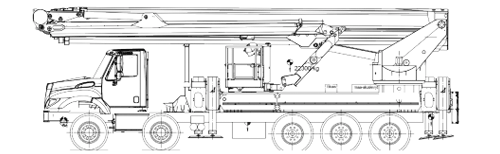

Diagrams presented with standard cage. Drawings with an example configuration and carrier, for reference purpose only. Variations apply. *depending on the chassis

230 ft
2 x 90° (2x220°
121 ft
2 x 280º
223 ft
12’ 5’’ *
1500 lb (1300 lb)
39 ft *
3’ 6’’ x 7’ 9’’ (12’ 1’’)
70,000 lb *
