BRONTO S230 XDT

AVAILABLE FOR:

The Bronto S230 XDT offers exceptional reliability, dynamic outreach, and key features like a telescopic cage boom, increased working load, and a compact design, making work at heights efficient and easy.

Customizable to meet operator needs, it’s designed as a long-term investment with lifecycle services to keep it in peak condition.

With a 225-ft platform height, 100 ft. of horizontal outreach, and the Bronto+ control system for enhanced safety, the S230 XDT is the ideal aerial work platform for any task.

Key Features:

  • 70 meters or 230 feet of vertical reach
  • Automatic outrigger leveling
  • 110 volts at platform level with generator at ground level (generator not included)
  • Extendable platform: 3’x11′
  • Voice on Command intercom from platform to turntable
  • Battery backup operation system
  • Manual emergency bleed off system
  • Integrated wind speed indicator
  • 28 mph max wind speed
  • Automatic platform levelling
  • Meets emissions laws for all states, including CA
Workloads
Max Working Height: 70 meters / 230 ft
Max Outreach: 32 meters / 105 ft
Max Basket Capacity: 600 kg / 1,300 lbs
Dimensions
Transport: 40 ft L x 8.5 ft W
Outrigger Footprint: 27 ft L x 27 ft W
Approx. Weight: 80,000-83,000 lbs
Standard Platform: 7.5 ft L x 3 ft W
Extendable Platform: 10 ft L x 3 ft W

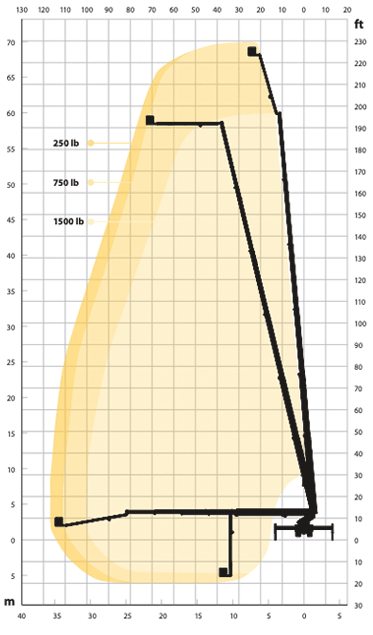

Working Envelope

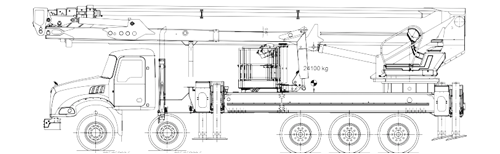

Diagrams presented with standard cage. Drawings with an example configuration and carrier, for reference purpose only. Variations apply. *depending on the chassis

230 ft
2 x 90°
118 ft
2 x 280º
224 ft
13'’ *
1500 lb
40 ft *
3’ 6’’ x 7’ 9’’ (12’ 1’’)
88,000 lb *
