BRONTO S219 HDT

The Bronto Skylift S 219 HDT is specially engineered for high-reach utility and transmission projects, ensuring optimal performance even in the most challenging conditions.

This powerful model features a working height of 219 feet and includes essential safety features such as dielectric testing up to 500 kV, a hydraulic oil cooler for efficient operation, and a tool circuit platform for added convenience and functionality.

Key Features:

  • Works on sub-transmission and transmission lines up to 765 kV
  • Working height: 140 to 219 feet; outreach: up to 88 feet
  • Load capacity: 1750 lbs (cage and material handling)
  • Precise Bronto+ control system for easy operation
  • Lifetime support to maintain high resale value

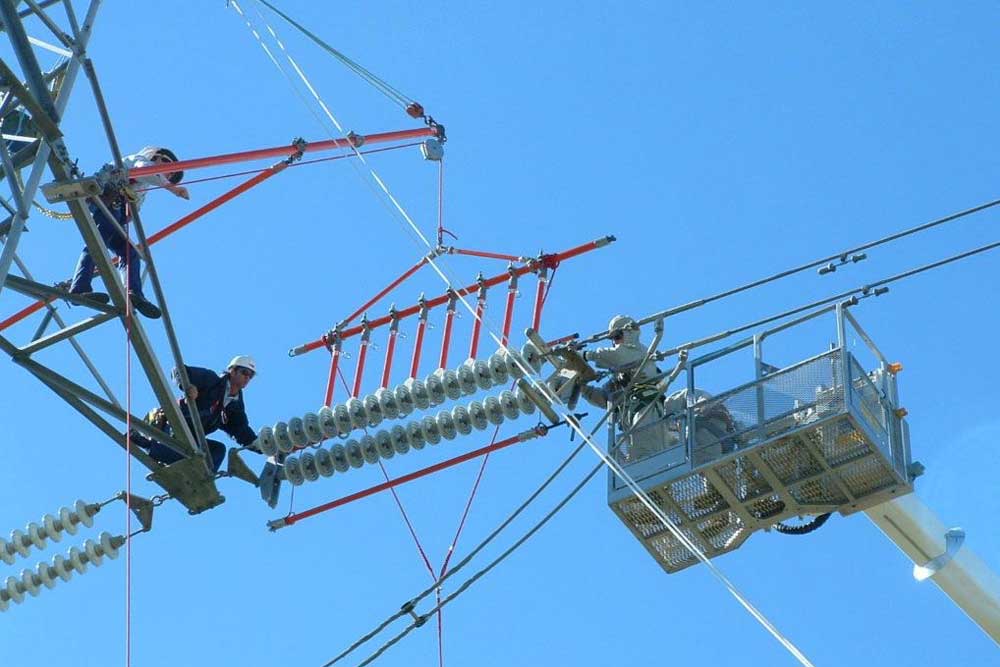

  • Enables bare-hand maintenance and repairs on energized lines
  • Boom features high-strength fiberglass and fiber optic control system
  • Desiccants inside the boom manage humidity
  • Corona ring ensures consistent voltage gradient along the boom
  • Fiber optic intercom system for communication between cage and control station
  • Boom leakage detector indicates actual current
Workloads
Max Working Height:67 meters / 219 ft
Max Outreach:27 meters / 88 ft
Max Up:65 meters / 212 ft
Max Over:1750 kg / 3858 lbs
Max Basket Capacity:453 kg / 1,000 lbs
Dimensions
Transport Dimensions:48.5 ft L x 13.5 ft W
Outrigger Footprint:19.7 ft L x 19.7 ft W
Gross Weight:90,000 lbs
Standard Platform:7.10 ft L x 3.7 ft W
Extendable Platform:17 ft L x 8.2 ft W

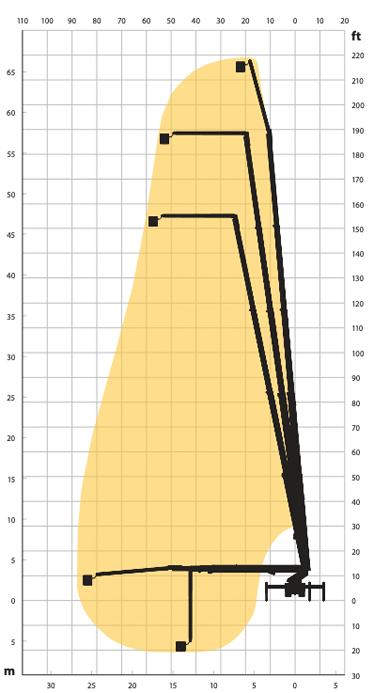

Working Envelope

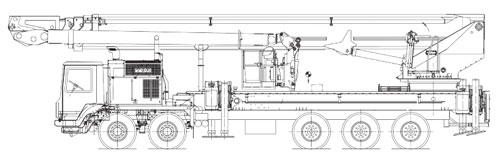

Diagrams presented with standard cage. Drawings with an example configuration and carrier, for reference purpose only. Variations apply. *depending on the chassis

219 ft
75°
88 ft
360º
212 ft
13’ 86’’ *
1000 lb
48' 6" *
3’ 7’’ x 7’ 10’’
90,000 lb *
