BRONTO S183 XR

AVAILABLE FOR:

The XR range of aerial platforms is built by operators, for operators, enabling you to achieve more with less.

Bronto’s S183XR offers enhanced reach and height, delivering greater productivity while reducing operational costs—all without compromising on safety. Featuring the best-in-class vertical reach-to-side reach ratio, this platform excels in maneuverability, making it ideal for navigating busy city streets with its compact design.

Equipped with the fifth-generation Bronto+ control system, it ensures precise and stable movements, a resistive touch screen, and easy, intuitive operation for a seamless user experience.

Key Features:

  • Vertical reach by truck
  • Automatic outrigger leveling
  • 110 volts at platform level with generator at ground level (generator not included)
  • Extendable platform: 3’x11′
  • Voice on Command intercom from platform to turntable
  • Battery backup operation system
  • Manual emergency bleed off system
  • Integrated wind speed indicator
  • 28 mph max wind speed
  • Automatic platform levelling
  • Meets emissions laws for all states, including CA
  • 220-degree basket rotation on XR units only
Workloads
Max Working Height: 56 meters / 183 ft
Max Outreach: 40 m / 131 ft
Max Basket Capacity: 600 kg / 1300 lbs
Dimensions
Transport: 39 ft L x 8.5 ft W
Outrigger Footprint: 29′ ft L x 29 ft W
Approx. Weight: 64,000-69,000 lbs
Standard Platform: 7.5 ft L x 3 ft W
Extendable Platform: 10 ft L x 3 ft W

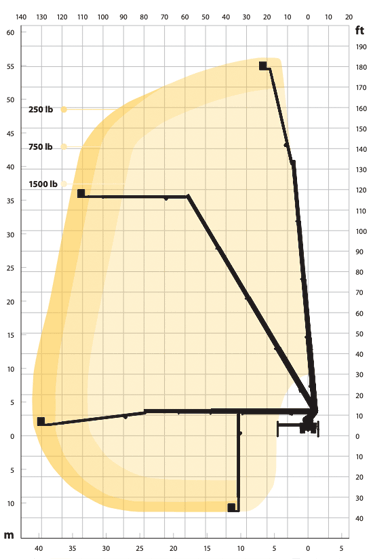

Working Envelope

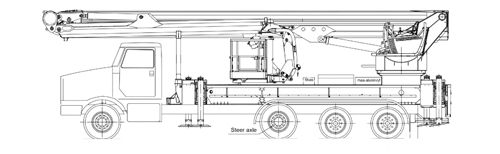

Diagrams presented with standard cage. Drawings with an example configuration and carrier, for reference purpose only. Variations apply. *depending on the chassis

183 ft
2 x 90°
131 ft
2 x 280º
177 ft
12’ 5’’ *
1500 lb (1300 lb)
39 ft *
3’ 6’’ x 7’ 9’’ (12’ 1’’)
57,000 lb *
