The Bronto S-173 XDT delivers exceptional reliability, impressive outreach, and key features like a high-capacity platform, compact design, and smooth operation, making work at heights efficient and safe.
Customizable to meet operator needs, it’s built for long-term performance with lifecycle services to ensure peak condition.
With a 173-ft working height, 115-ft horizontal outreach, and the Bronto+ control system for enhanced safety, the S-173 XDT is the ideal aerial work platform for demanding tasks.
| Max Working Height: | 52 meters / 173 ft |
| Max Outreach: | 34 meters / 110 ft |
| Max Up: | 42 meters / 135 ft |
| Max Over: | 22 meters / 70 ft |
| Max Basket Capacity: | 680 kg / 1,450 lbs |
| Transport Dimensions: | 39 ft L x 8.5 ft W |
| Outrigger Footprint: | 27 ft L x 27 ft W |
| Gross Weight: | 48,000 lbs |
| Standard Platform: | 7.5 ft L x 3 ft W |
| Extendable Platform: | 10 ft L x 3 ft W |

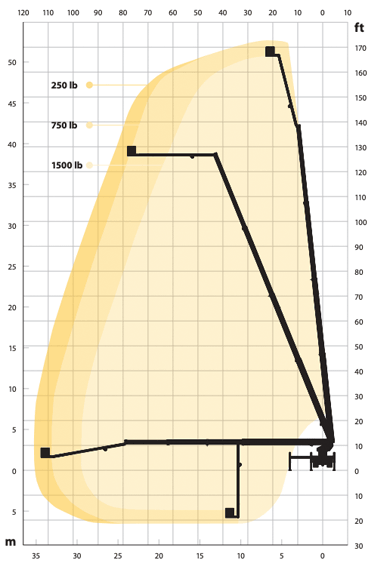

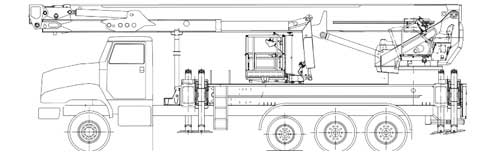

Diagrams presented with standard cage. Drawings with an example configuration and carrier, for reference purpose only. Variations apply. *depending on the chassis
