BRONTO S150 XDT

AVAILABLE FOR:

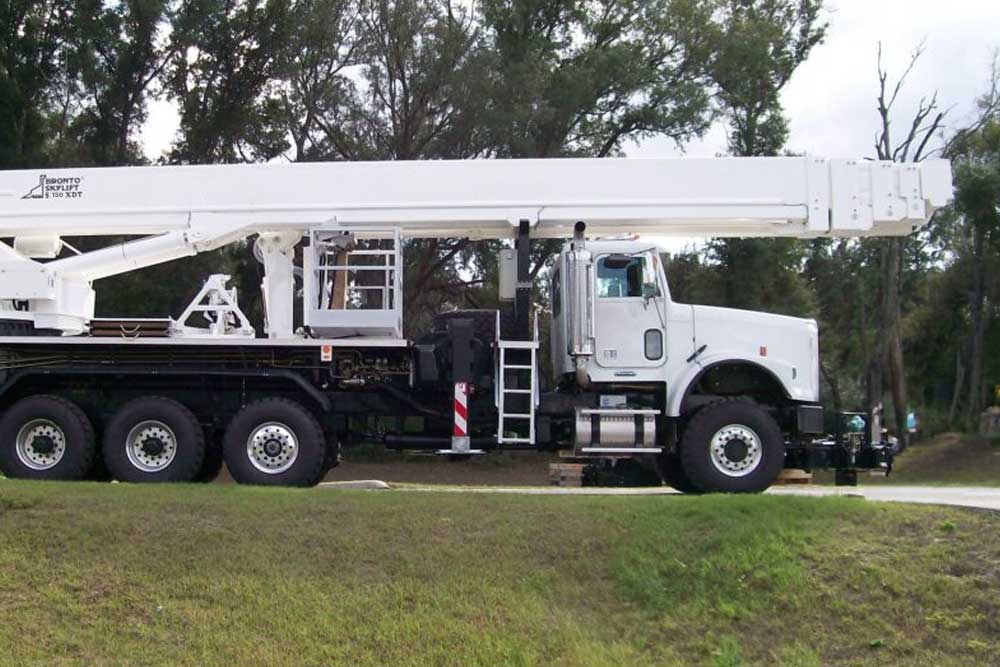

The Bronto Skylift 150 XDT aerial work platform is our compact model, offering a reach of 150 feet (46 meters).

With a working height range from 110 to 150 feet, it’s ideal for projects that require precision, including those with a negative reach of up to 50 feet.

Commonly used for small power line work, this model is the perfect solution for municipalities handling power repairs and general maintenance.

Key Features:

Vertical reach by truck
Automatic outrigger leveling
110 volts at platform level with generator at ground level (generator not included)
Extendable platform: 3′ x 11′
Voice on Command intercom from platform to turntable
Battery backup operation system
Manual emergency bleed-off system
Integrated wind speed indicator
28 mph max wind speed
Automatic platform leveling
Meets emissions laws for all states, including CA

Workloads

Max Working Height:	45 meters / 150 ft
Max Outreach:	24 meters / 82 ft
Max Up:	35 meters / 115 ft
Max Over:	20 meters / 60 ft
Max Basket Capacity:	680 kg / 1,400 lbs

Dimensions

Transport Dimensions:	39 ft L x 8.5 ft W
Outrigger Footprint:	27 ft L x 27 ft W
Gross Weight:	48,000 lbs
Standard Platform:	7.5 ft L x 3 ft W
Extendable Platform:	10 ft L x 3 ft W

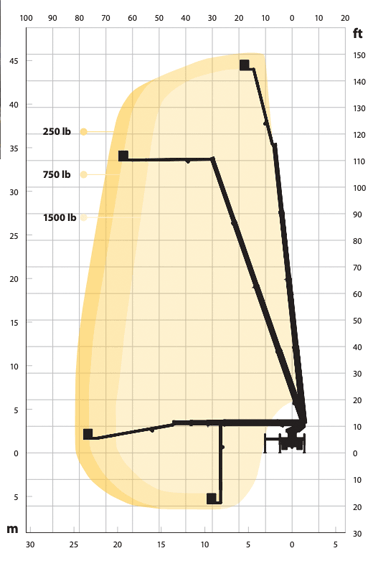

Working Envelope

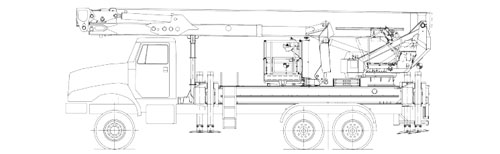

Diagrams presented with standard cage. Drawings with an example configuration and carrier, for reference purpose only. Variations apply. *depending on the chassis

BRONTO S150 XDT

Key Features:

Workloads

Dimensions

Working Envelope

150 ft

2 x 90°

82 ft

2 x 280º

144 ft

12’ 8’’ *

1500 lb

33 ft *

3’ 6’’ x 7’ 9’’ (12’ 1’’)

48,000 lb *
